Basic Operation
Sample Preparation
- put fine ground coffee into an espresso basket
- tamp hard

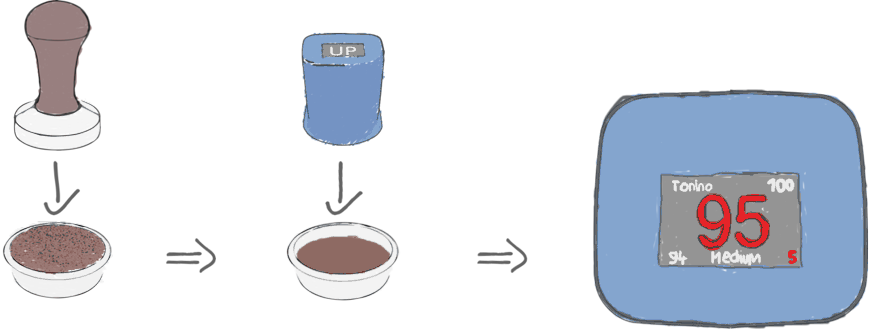

Scanning
- lift Tonino and put it on top of the coffee sample
- read the roast degree from the display
By tamping instead of just leveling the coffee the results are less influenced by the grind.
Features
- small sample size
- gesture-driven
- wireless operation and charging
- target mode
- user-defined scales
- environmentally friendly

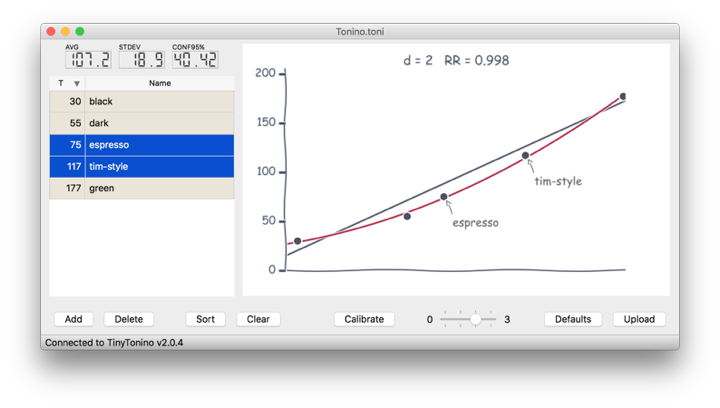

- open-source Tonino app
(Mac/Windows/Linux)

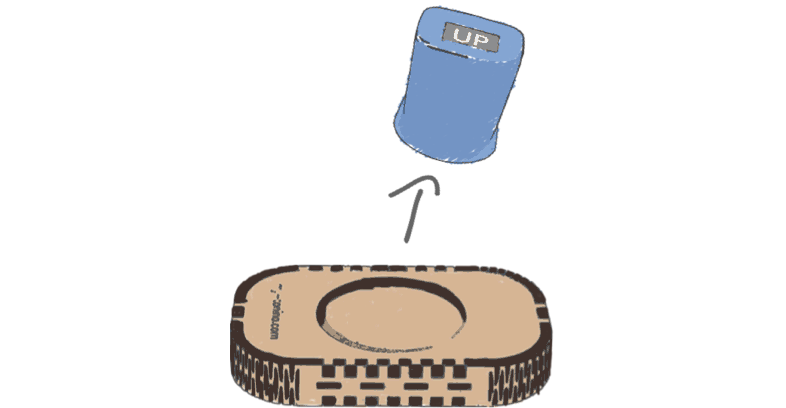

Raise to Wake
Scanning

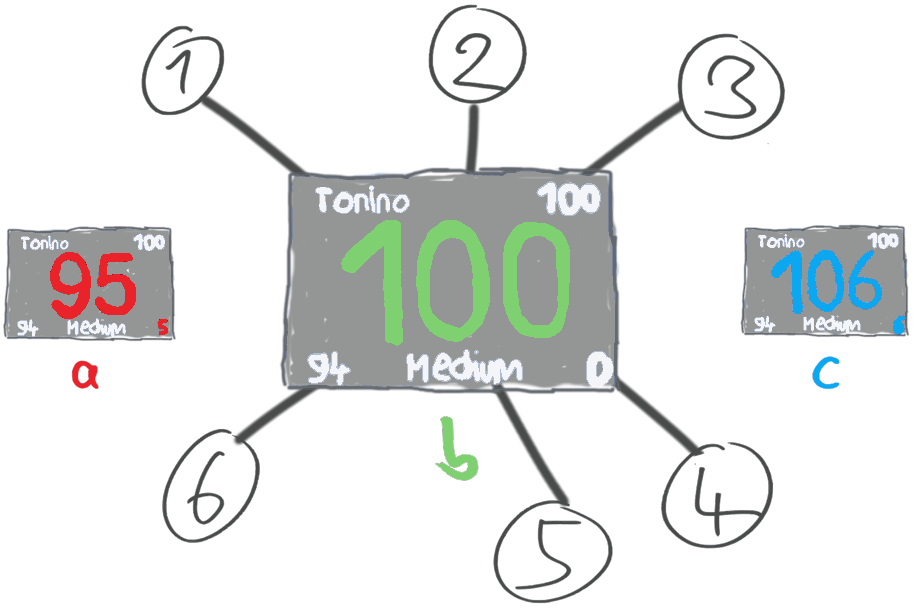

Target Mode
| 1 | scale name |
| 2 | color reading |
| 3 | target value |
| 4 | difference |
| 5 | roast name |
| 6 | previous reading |
| a | darker |
| b | hit |
| c | lighter |

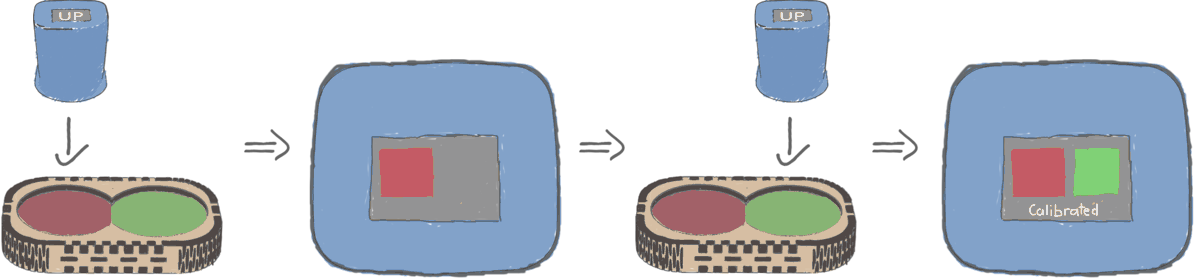

Calibrating

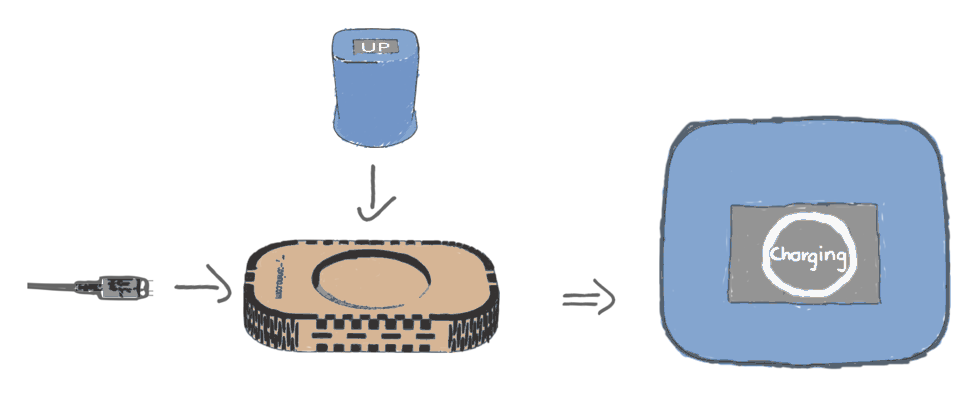

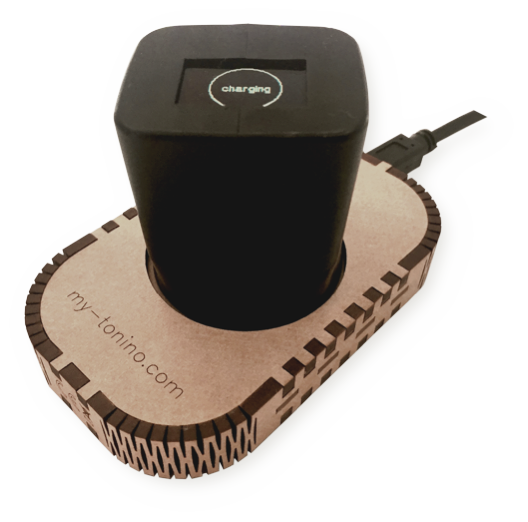

Charging
Technical Data

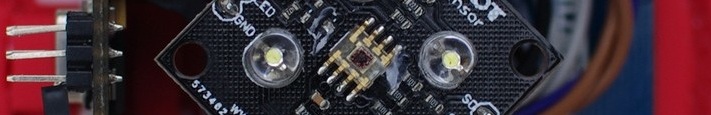

- Sensor
- True Color 64-channel photo detector
- Measurement principle
- Polychromatic reflection
- Illumination source
- 4 full-spectrum white LEDs
- Observed surface area
- 5.3cm2
- Sample size
- ca. 20g fine ground coffee
- Display
- OLED color display, 0.96"
- Default range
- 0-200
- Time per measurement
- 2sec
- Measuring precision
- ±2 scale divisions
- Data interface
- RS232 serial via USB
- Power supply
- Micro USB
- Battery capacity
- 270mA (12h of operation; charged in 4h)
- Power consumption
- 0.25-18mA (0.000925-0.066W)
- Dimensions
- 4.7cm x 3.8cm x 4.3cm
- Weight
- 50g
- Included accessories
- Calibration and charging base
- Short micro USB cable
Waste disposal/Environmental protection
According to the EU directive 2012/19/EU "Waste Electrical and Electronic Equipment (WEEE)", this device must not be disposed as unsorted municipal waste. Instead it must be collected separately.
CE-Conformity
This device fulfills the requirements of the EU Declaration of Conformity 2014/30/EU "Electromagnetic compatibility".
